TMC812
11–65 GHz
Balun
Product Features
  • Converts balanced signal to unbalanced and vice-versa
  • Low insertion loss
  • Tight amplitude and phase matching
  • 1.25 mm x 0.85 mm symmetrical die layout
Application
  • RF systems with balanced and unbalanced signals
  • High-speed digital systems requiring balanced to unbalanced transformers
Product Description

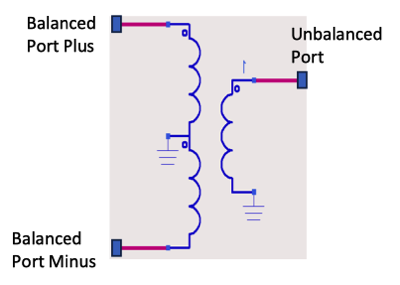

The TMC812 is a low loss, 50 Ω balun covering 11 to 65 GHz. Fabricated with a high power, high Q GaAs process, the balun has low loss, tight gain and phase matching, and high power handling. All ports are DC coupled. The balun is available in die form for assembly in multi-chip modules.
Min Typ Max Units
Frequency Range 11 65 GHz
Excess Insertion Loss 2.7 dB
Amplitude Balance 0.5 dB
Phase Matching 1.5 deg
Common Mode Rejection 35 dB
Return Loss 10 dB
Preliminary Information: The data contained in this document describes new products in the sampling or preproduction phase of development and is for information only. mmTron reserves the right to change without notice the characteristic data and other specifications as they apply to this product.
