3–16 GHz
Dual-Channel A/D Converter RF Interface
Product Features
  • Dual-Channel Version of the TMC161-16
  • RF Frequency: 3 to 16 GHz
  • Linear Gain: 16 dB
  • Noise Figure: 6 dB
  • OIP3: 29 dBm
  • 7 mm x 7 mm air-cavity QFN
  • Software-Defined Radios
  • Electronic Warfare Receivers
  • Radar Receivers
  • Instrumentation Receivers
Product Description

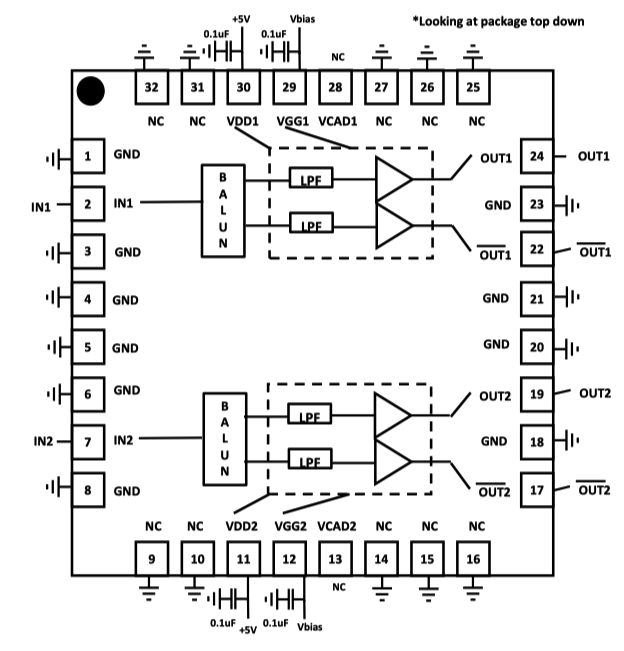

The TMC181-16 is a dual-channel version of the TMC161-16 in a 7 mm x 7 mm air-cavity QFN. Each channel converts a single-ended RF input to a differential output to drive a high-speed A/D converter for direct-sampling systems operating from L/S/C- into Ka-Band. Each channel integrates an input balun with bias tee, quasi-differential low noise amplifiers, and anti-alias lowpass filters. The TMC181-16 covers an RF frequency range from 3 to 16 GHz.
Min Typ Max Units
Frequency Range 3 16 GHz
Gain 16 dB
Noise Figure 6 dB
OIP3 29 dBm
Return Loss 10 dB
Drain Bias 5 V
Supply Current 250 mA
Preliminary Information: The data contained in this document describes new products in the sampling or preproduction phase of development and is for information only. mmTron reserves the right to change without notice the characteristic data and other specifications as they apply to this product.
