TMC180-16
3–16 GHz
Dual-Channel D/A Converter Interface IC
Product Features
  • Dual-Channel Version of the TMC160-16
  • RF Frequency: 3 to 16 GHz
  • Linear Gain: 16 dB
  • OIP3: 29 dBm
  • Package: 7 mm x 7 mm air-cavity QFN
  • DC Power: 5 V, 250 mA and a low current negative supply
Application
  • Instrumentation
  • Communications
  • Radar
  • Electronic Warfare
Product Description

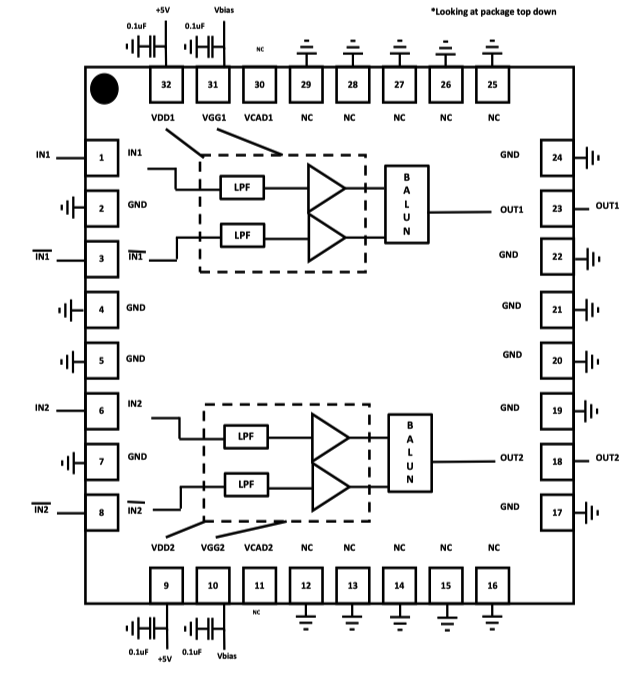

The TMC180-16 is a two-channel D/A converter interface in a 7 mm x 7 mm air-cavity QFN. Each channel comprises a differential anti-alias filter, a pair of quasi-differential distributed low noise amplifiers, and a balun. Built-in bias tees eliminate the need for one outside the package. The output of each channel is matched to 50 Ω. The anti-alias filters can be custom designed to reject the D/A converter's clock frequency and its mixing components.
Min Typ Max Units
Frequency 3 26 GHz
Gain 16 dB
Noise Figure 4 dB
OIP3 29 dBm
Return Loss 10 dB
Bias Voltage 5 V
Bias Current 250 mA
Preliminary Information: The data contained in this document describes new products in the sampling or preproduction phase of development and is for information only. mmTron reserves the right to change without notice the characteristic data and other specifications as they apply to this product.

REQUEST DATA SHEET or SAMPLES
